No |
Item |
材質 |
hole |
Height |
Length |
Width of A to C |
Bonding pad |
Head |
Cup |
Angle |
Depth of Cup |
Diameter of Cup bottom |
Diameter of cup above |
Slug Pad |
Remark |
1 |
02-1109 |
SPCC |
7.62 |
25.42 |
152.4 |
2.34 |
Single |
Short |
- |
- |
- |
- |
Ø 0.65 |
No |
Ø3mmFlat Head |
2 |
02-1122 |
SPCC |
7.62 |
25.42 |
152.4 |
2.3 |
Single |
Short |
Round |
90° |
0.2 |
Ø 0.6 |
Ø 1.15 |
No |
Ø 3mm |
3 |
03-1023 |
SPCC |
7.62 |
36.08 |
152.4 |
3.26 |
Single |
Short |
Round |
90° |
0.35 |
Ø 0.7 |
Ø 1.5 |
No |
Ø 5mm |
4 |
03-1132 |
SPCC |
7.62 |
36.08 |
152.4 |
3.25 |
Single |
Short |
Round |
75° |
0.55 |
Ø 0.55 |
Ø 1.6 |
Yes |
Ø 3mm Fog Light |
5 |
03-1133 |
SPCC |
7.62 |
36.08 |
152.4 |
3.28 |
Single |
Short |
Round |
90° |
0.37 |
Ø 0.6 |
Ø 1.35 |
No |
Ø 5mm |
6 |
03-1134 |
SPCC |
7.62 |
36.08 |
152.4 |
3.28 |
Single |
Short |
Round |
90° |
0.4 |
Ø 0.7 |
Ø 1.7 |
No |
Ø 5mm Super High Light |
7 |
03-1135 |
SPCC |
7.62 |
36.08 |
152.4 |
3.26 |
Single |
Short |
- |
- |
- |
- |
Ø 0.95 |
No |
Ø 5mm Flat Head |
8 |
03-133S |
SPCC |
7.62 |
36.08 |
152.4 |
3.26 |
Single |
Short |
Round |
90° |
0.35 |
Ø 0.7 |
Ø 1.45 |
No |
Ø 5mm |
9 |
03-1503 |
SPCC |
7.62 |
36.08 |
152.4 |
3.28 |
Single |
Short |
Round |
90° |
0.3 |
Ø 0.7 |
Ø 1.4 |
無 |
Ø 5mm |
10 |
03-1536 |
SPCC |
7.62 |
36.08 |
152.4 |
3.26 |
Single |
Short |
Round |
90° |
0.4 |
Ø 0.7 |
Ø 1.67 |
無 |
Ø 5mm Super High Light |
11 |
03-153R |
SPCC |
7.62 |
36.08 |
152.4 |
3.28 |
Single |
Short |
Round |
78° |
0.55 |
Ø 0.55 |
Ø 1.65 |
無 |
Ø 5mm |
12 |
03-17Z3 |
SPCC |
7.62 |
36.08 |
152.4 |
3.26 |
Single |
Short |
Round |
75° |
0.45 |
Ø 0.6 |
Ø 1.45 |
無 |
Ø 5mm Super High Light |
13 |
04-1011 |
SPCC |
7.62 |
36.08 |
152.4 |
2.45 |
Single |
Long |
- |
- |
- |
- |
Ø 0.9 |
無 |
Ø 3mm Flat Head |
14 |
04-111V |
SPCC |
7.62 |
36.08 |
152.4 |
2.5 |
Single |
Long |
Round |
75° |
0.25 |
Ø 0.55 |
Ø 1.14 |
Yes |
Ø 3mm With Slug-Pad |
15 |
04-1143 |
SPCC |
7.62 |
36.08 |
152.4 |
2.6 |
Dual |
Long |
Round |
70° |
0.3 |
Ø 0.55 |
Ø 1.15 |
NO |
Ø 3mm Blue White green LED |
16 |
04-11LD |
SPCC |
7.62 |
36.08 |
152.4 |
2.4 |
Dual |
Long |
Round |
55° |
0.45 |
Ø 0.55 |
Ø 1.2 |
無 |
Ø 3mm Blue White green LED |
17 |
04-11Y7 |
SPCC |
7.62 |
36.08 |
152.4 |
2.3 |
Single |
Short |
Round |
90° |
0.2 |
Ø 0.6 |
Ø 1.15 |
No |
Ø 3mm |
18 |
04-1310 |
SPCC |
7.62 |
36.08 |
152.4 |
2.34 |
Single |
Short |
Round |
90° |
0.25 |
Ø 0.6 |
Ø 1.1 |
No |
Ø 3mm |
19 |
04-1311 |
SPCC |
7.62 |
36.08 |
152.4 |
2.25 |
Single |
Long |
Round |
90° |
0.25 |
Ø 0.6 |
Ø 1.1 |
No |
Ø 3mm |
20 |
04-13DD |
SPCC |
7.62 |
36.08 |
152.4 |
2.4 |
Dual |
Short |
Round |
80° |
0.45 |
Ø 0.55 |
Ø 1.2 |
No |
Ø 3mm Blue White green LED |
21 |
04-1504 |
SPCC |
7.62 |
36.08 |
152.4 |
2.38 |
Single |
Short |
Round |
90° |
0.25 |
Ø 0.6 |
Ø 1.15 |
無 |
Ø 3mm |
22 |
04-1514 |
SPCC |
7.62 |
36.08 |
152.4 |
2.38 |
Single |
Short |
Round |
75° |
0.35 |
Ø 0.6 |
Ø 1.2 |
無 |
Ø 3mm |
23 |
04-1543 |
SPCC |
7.62 |
36.08 |
152.4 |
2.38 |
Single |
Long |
Round |
90° |
0.25 |
Ø 0.6 |
Ø 1.12 |
無 |
Ø 3mm |
24 |
04-15JF |
SPCC |
7.62 |
36.08 |
152.4 |
2.9 |
Dual |
Long |
Oval |
90° |
0.14&0.25 |
Ø 0.9 |
Ø 1.15 |
無 |
Ø 5mm Oval-shapde |
25 |
04-15LD |
SPCC |
7.62 |
36.08 |
152.4 |
2.38 |
Dual |
Long |
Round |
70° |
0.35 |
Ø 0.58 |
Ø 1.25 |
無 |
Ø 3mm Blue White green LED |
26 |
04-16A5 |
SPCC |
7.62 |
36.08 |
152.4 |
2.65 |
Dual |
Long |
Round |
75° |
0.5 |
Ø 0.53 |
Ø 1.35 |
No |
Ø 3mm Blue White green LED |
27 |
04-16A6 |
SPCC |
7.62 |
36.08 |
152.4 |
2.65 |
Dual |
Long |
Round |
68° |
0.5 |
Ø 0.6 |
Ø 1.3 |
No |
Ø 3mm Blue White green LED |
28 |
04-16LA |
SPCC |
7.62 |
36.08 |
152.4 |
2.55 |
Dual |
Long |
Round |
75° |
0.42 |
R0.275 |
R0.585 |
No |
Ø 3mm Blue White green LED |
29 |
04-17ZD |
SPCC |
7.62 |
36.08 |
152.4 |
2.5 |
Dual |
Long |
Round |
70° |
0.32 |
Ø 0.6 |
Ø 1.2 |
無 |
Ø 3mm Blue White green LED |
30 |
04-184A |
SPCC |
7.62 |
36.08 |
152.4 |
2.44 |
Dual |
Long |
Round |
90° |
0.45 |
Ø 0.55 |
Ø 1.2 |
無 |
Ø 3mm Blue White green LED |
31 |
04-184B |
SPCC |
7.62 |
36.08 |
152.4 |
2.34 |
Single |
Short |
- |
- |
- |
- |
Ø 0.9 |
無 |
Ø3 mm Flat Head |
32 |
05S-J724 |
CU |
12.7 |
10.6 |
190.5 |
6.6 |
Single |
|
Round |
70° |
0.32 |
Ø 0.60 |
Ø 1.50 |
- |
BrakeLight/Light |
33 |
05S-T01 |
CU |
12.7 |
10.6 |
190.5 |
6.6 |
Single |
|
Round |
90° |
0.55 |
Ø 0.53 |
Ø 1.5 |
- |
BrakeLight(R cup) |
34 |
05S-T08 |
CU |
12.7 |
10.6 |
190.5 |
6.6 |
Single |
|
Round |
40° |
0.32 |
Ø 0.65 |
Ø 0.88 |
- |
|
35 |
05S-T08A |
CU |
12.7 |
10.6 |
190.5 |
6.6 |
Single |
|
Round |
40° |
0.32 |
Ø 0.65 |
Ø 0.88 |
- |
BrakeLight/Light (R cup) |
36 |
05S-T15 |
CU |
12.7 |
10.6 |
190.5 |
6.6 |
三?點 |
|
Round |
90° |
0.55 |
Ø 1.85 |
|
- |
BrakeLight/Light (R cup) |
38 |
06-1510 |
SPCC |
7.62 |
36.08 |
152.4 |
3.6 |
Dual |
Short |
- |
- |
- |
- |
Ø 1.1 |
無 |
Ø 5mm Flat Head |
39 |
07-1511 |
SPCC |
7.62 |
36.08 |
152.4 |
2.4 |
Dual |
Short |
- |
- |
- |
- |
Ø0.95 |
無 |
Ø3 mm Flat Head |
40 |
09-1512 |
SPCC |
7.62 |
37.18 |
152.4 |
4.36 |
Dual |
Long |
Oval |
90° |
0.25 |
Ø 1.2 |
Ø 1.13 |
無 |
Ø 5mm Oval-shapde |
41 |
09-1513 |
SPCC |
7.62 |
37.18 |
152.4 |
2.59 |
Dual |
Long |
Oval |
80° |
0.25 |
Ø 1.1 |
Ø 1.5 |
無 |
Ø3 mm Oval-shapde |
43 |
30-1113 |
CU |
15.23 |
28.2 |
152.4 |
7.5 |
Single |
Short |
Round |
60° |
0.50 |
Ø 1.30 |
Ø 1.90 |
有 |
High Power |
44 |
30-1115 |
CU |
15.23 |
28.2 |
152.4 |
7.5 |
Single |
Short |
Round |
60° |
0.50 |
Ø 1.55 |
Ø2.00 |
有 |
High Power |
45 |
FC-1019 |
SPCC |
7.62 |
36.08 |
152.4 |
4.5 |
三?點 |
Long |
Oval |
|
0.2 |
R0.7 |
Ø 2.15 |
有 |
Full color |
46 |
HP-1611 |
SPCC |
7.62 |
23.00 |
152.42 |
3.86 |
Dual |
Short |
Round |
45° |
0.35 |
Ø 1.4 |
Ø 1.9 |
No |
High power |
47 |
IN-1610 |
SPCC |
7.62 |
39.25 |
152.4 |
5.6 |
Dual |
- |
- |
- |
- |
- |
- |
No |
Plane |
48 |
TS-112A |
SPCC |
7.62 |
36.08 |
152.4 |
2.34 |
Single |
Short |
Round |
90° |
0.2 |
Ø 0.6 |
Ø 1.15 |
Yes |
Ø 3mm |
HOME

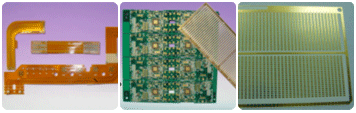

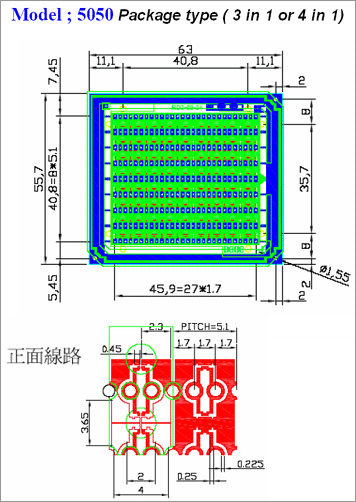

Power LED용 PCB type package
